The number one cause of fitment mistakes when buying BMW headlights is ordering the wrong connector variant. BMW used different headlight connectors across halogen, xenon and LED specs, and the pin count is how you tell them apart. This guide shows you how to check in two minutes so you order right first time.
Why the connector matters
Aftermarket IKON and laser-style headlights are sold in variants - commonly 6 pin, 8 pin, 9 pin and 10 pin - because they're designed to plug straight into the connector your car already has. Match the variant to your connector and it's plug and play. Get it wrong and it won't connect properly. The pin count also tells you your original lighting technology, which affects whether any coding is needed.

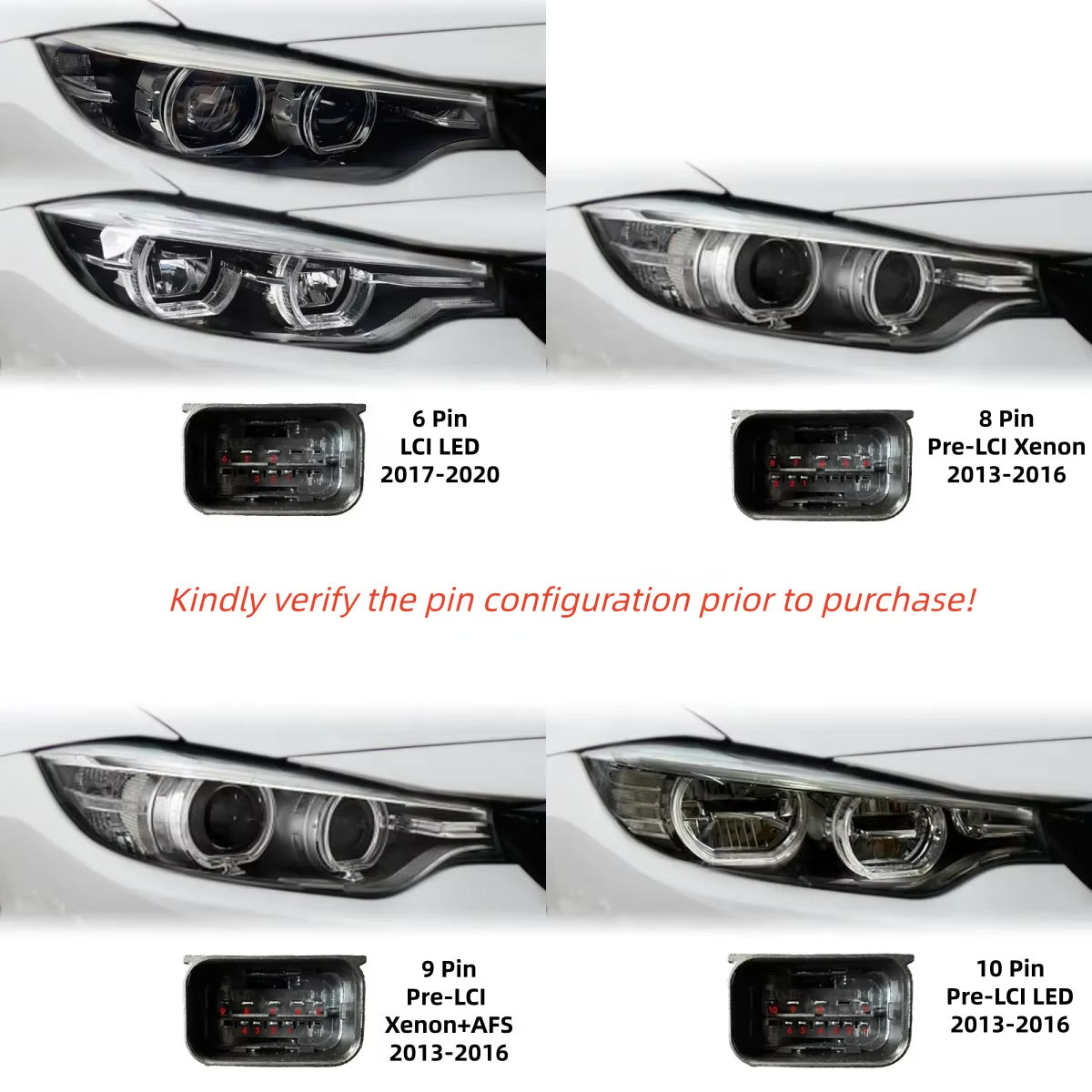

What each pin count generally indicates
This varies by model, but as a rule of thumb on F-chassis cars:
- 6 pin - typically the later LCI LED headlight spec.
- 8 pin - typically Pre-LCI xenon (non-adaptive).
- 9 pin - typically Pre-LCI xenon adaptive.
- 10 pin - typically Pre-LCI LED adaptive.
Halogen cars use their own connector and are usually the most straightforward. Always confirm against your actual car rather than assuming from year alone.
How to check your connector (step by step)
- Remove one front wheel and remove arch liner/fender liner. (on some models you can reach the connector without removing arch liner but by removing arch liner fender liners headlight access panel/cover/flap).
- Locate the headlight's main electrical plug at the back of the unit.
- Unclip it and take a picture of the connector face.
- Count the pin slots - that's your 6 / 8 / 9 / 10.
- If you're not 100% sure still, take a picture and send it to us and we'll confirm.
If you can't easily reach the connector, two other clues help: your car's original headlight type (halogen, xenon or LED - often listed in the original build/options) and your production date (Pre-LCI vs LCI vs LCI2).
Adaptive headlights - one extra thing to know
If your car has adaptive (swivelling) headlights - common on 9 and 10 pin cars - aftermarket units don't replicate the swivel function, so the adaptive feature is simply coded out to stop a dash warning. The headlights still work perfectly for dip, main, indicator and DRL. (We are working on real adaptive led headlights for a lower cost similar to aftermarket cost.)
Order with confidence
When you're on a product page, select the variant that matches your connector. Not sure? Photograph the connector and message us before ordering - it takes seconds to confirm and saves you a return. Tell us your chassis code, year and original headlight type and we'll match the exact variant, whether that's our F80 M3 / F82 M4 IKON headlights or another chassis. Getting this one detail right is the difference between a clean plug-and-play afternoon and a frustrating mismatch - so check before you buy.
FAQ
How do I know if my BMW is 6, 8, 9 or 10 pin?
Unclip the plug at the back of the headlight and count the pin slots. Photograph it and send it to us if unsure.
What if I order the wrong pin variant?
It won't plug in correctly or it plugs in but won’t work. Always confirm your connector first - message us a photo and we'll check. We can replace your headlights but we will have to charge you return and redelivery fees.
Do adaptive (9/10 pin) cars need coding?
Usually one error is coded out for the adaptive function; all core functions still work.
